tensorflowやtflearnでモデルを作っていると、ネットワークを図にしたり学習の進み具合をさくっとグラフにしてくれるツールがあると便利だな、と思ったことがあると思います。 Googleで検索をしているとtensorboardなるものを見つけたので、こちらを使って見たいと思います。 ちなみに、この記事の内容は以下のDockerイメージを使うことでさくっと試すことができます。環境
ニューラルネットワークを簡単に作りたかったので、tflearnを使いました。- OS : Ubuntu 16.04
- python : 3.5.2
- tensorflow : 1.1.0
- tfLearn : 0.3
- tensorboard : 1.0.0a6
tensorboardのインストール
tensorboardはpip installでインストールできるので、非常に簡単です。ただ、私の環境ではvirtualenvではうまく動作しなかったので注意してください。検索すると、既知の問題のようで、githubのissuesやstackoverflowのページがいくつかヒットします。 もしpython環境を整備していなかったらこちらを参考にしてみてください。pip install tensorboard
サンプルニューラルネットワークの構築

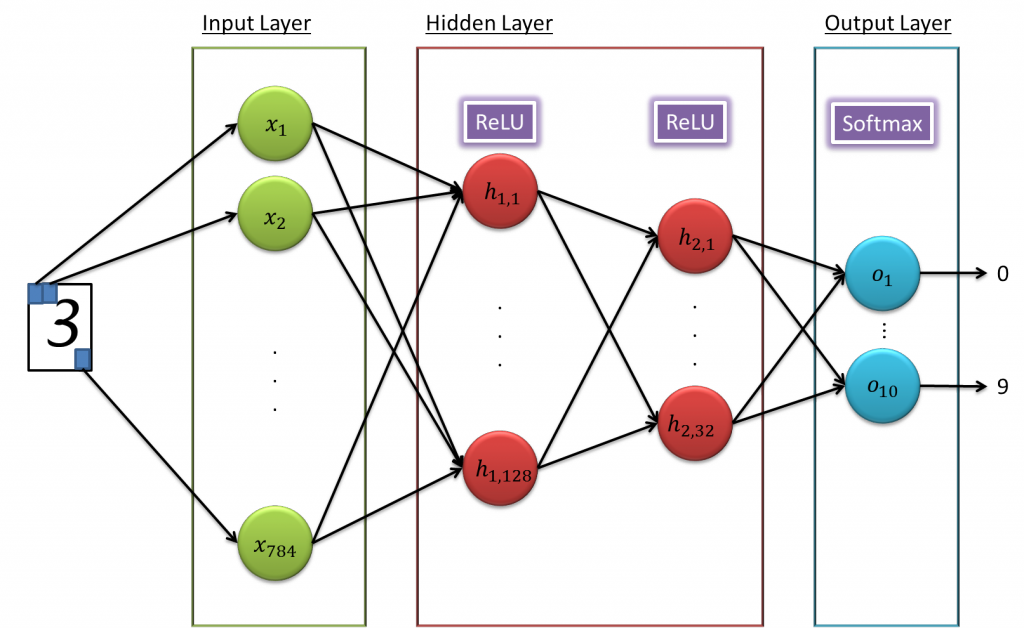

MNISTデータセットを使って手書き数字認識のタスクをニューラルネットワークにやらせて、その様子をtensorboardで見たいと思います。 もしnumpy, tensorflow, tflearnをインストールしていなければ、pip installでインストールしてください。 構築するモデルは、入力層のユニットが784(28 x 28ピクセル)個、隠れ層は2層あって1つ目は128個、2つ目は32個のユニットがあります。そして最後に出力層が0から9の数字を表せられるように10個のユニットになっています。 図で表すと以下のようなネットワークになっています。 これをtflearnを使ってコードにすると以下のようになります。ディープではなくシンプルなニューラルネットワークで、しかもepochを20程度にしかしていません。それでも、私が試したときは約91%の正答率を出していました。import numpy as np import tensorflow as tf import tflearn import tflearn.datasets.mnist as mnist # 1. Load MNIST data X_train, y_train, X_test, y_test = mnist.load_data(one_hot=True) # 2. Build a NN Model tf.reset_default_graph() net = tflearn.input_data([None, X_train.shape[1]]) # Input Layer net = tflearn.fully_connected(net, 128, activation='ReLU') # Hidden Layer 1 net = tflearn.fully_connected(net, 32, activation='ReLU') # Hidden Layer 2 net = tflearn.fully_connected(net, 10, activation='softmax') # Output Layer net = tflearn.regression(net, optimizer='sgd', learning_rate=0.01, loss='categorical_crossentropy') model = tflearn.DNN(net, tensorboard_verbose=3) # 3. Traning model.fit(X_train, y_train, validation_set=0.1, show_metric=True, batch_size=100, n_epoch=20) # 4. Testing predictions = np.array(model.predict(X_test)).argmax(axis=1) actual = y_test.argmax(axis=1) test_accuracy = np.mean(predictions == actual, axis=0) print("Test accuracy: ", test_accuracy)
tensorboardでモデルと学習の様子を確認
tflearnを使うと/tmp/tflearn_logsにtensorboardで使えるログが勝手に出力されます。 tensorboardはWebUIで、以下のコマンドで立ち上げることが出来ます。ポート番号はデフォルトが6006なので、オプションで指定する必要はありません。後はhttp://localhost:6006といったURLでアクセスするだけです。 構築したニューラルネットワークはGRAPHSタブで確認できます。慣れるまでは若干見にくそうですが、トポロジ情報だけでなく学習方法など詳細な情報も含まれていて、コードを追うよりは簡単にモデルを把握することが出来ます。 学習の進捗の様子はSCALARSタブで確認出来ます。各層ごとに確認できるので便利ですね。 ちなみに、複数回実行すると、複数の結果を同時に見ることができます。tensorboard --logdir='/tmp/tflearn_logs' --port=6006
Jupyter Notebook上で構築したモデルを軽く見たい場合
tensorboardだと別タブでモデルを見ることになります。もしJupyter Notebookで、構築したモデルを見たい場合は、tfgraphvizというライブラリが使えます。 ただ、注意事項として、tfgraphvizの結果は特別見やすいわけではないです。あくまで理解の補助として利用いただければいいと思います。 これもインストールはpip installするだけです。tflearnでは結果が出力されなかったので、tensorflowで簡単なモデルを書いて出力させてみます。以下の例はこの記事の例を利用させていただいています。pip install tfgraphviz
これをjupyter notebook上で実行すると、以下のような図が出力されます。 すごく見やすいわけではないですが、雰囲気はつかめるかと思います。import numpy as np import tensorflow as tf tf.reset_default_graph() # Creating input and correct result data x_data = np.random.rand(100).astype(np.float32) y_data = x_data * 0.1 + 0.3 # Build network W = tf.Variable(tf.random_uniform([1], -1.0, 1.0)) b = tf.Variable(tf.zeros([1])) y = W * x_data + b loss = tf.reduce_mean(tf.square(y - y_data)) optimizer = tf.train.GradientDescentOptimizer(0.5) train = optimizer.minimize(loss) # Output graph with tfgraphviz tfg.board(tf.get_default_graph())
Dockerイメージ
この記事で紹介したことは、以下のDockerイメージですぐ試すことができます。 利用方法は以下のようにdocker pullしてdocker runするだけです。samples.ipynbファイルがあり、その中にこの記事で紹介したコードがすでにあるので、実行してみてください。この記事がなんらかの参考になれば幸いです。### Docker Pull docker pull zuqqhi2/ml-python-sandbox:latest docker images #REPOSITORY TAG IMAGE ID CREATED SIZE #zuqqhi2/ml-python-sandbox latest 4402825ff756 2 hours ago 12.9 GB ### Run jupyter without login to container docker run -it -p 8888:8888 -p 6006:6006 zuqqhi2/ml-python-sandbox
